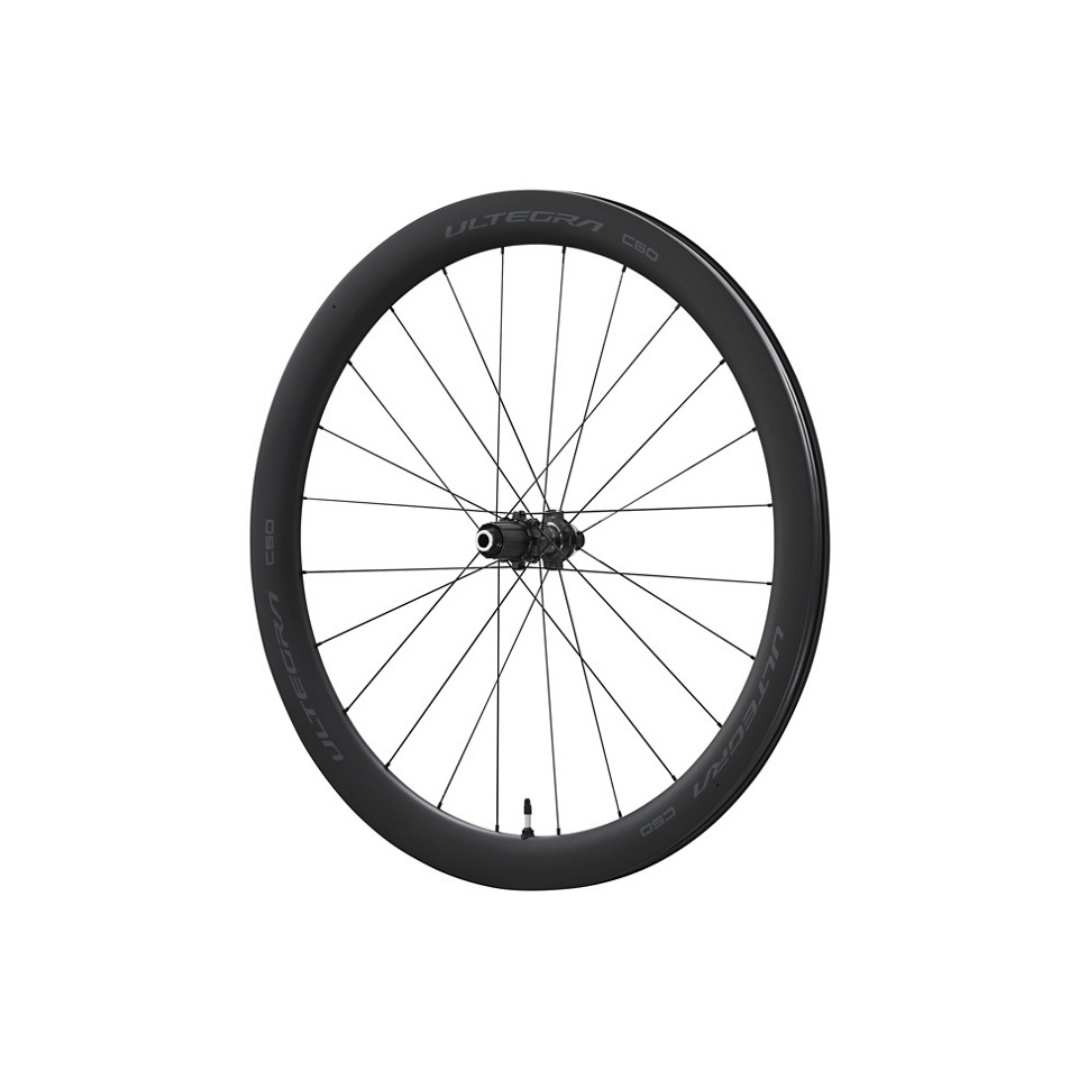

SHIMANO ULTEGRA DISC BRAKE CENTER LOCK TUBELESS WHEEL WH-R8170-C50-TL

SHIMANO ULTEGRA DISC BRAKE CENTER LOCK TUBELESS WHEEL WH-R8170-C50-TL

$1,099.00 USD
$1,099.00 USD
Sale Sold out
Shipping calculated at checkout.

Summiting climbs, carving descents, or cruising the flats, the new C50 is the jack of all trades among the new ULTEGRA R8170 wheel lineup. The tubeless, carbon rim features a 21 mm internal width that pairs nicely with wider, modern tires while the HYPERGLIDE cassette body is compatible with 11 and 12-speed cassettes.

BENEFIT

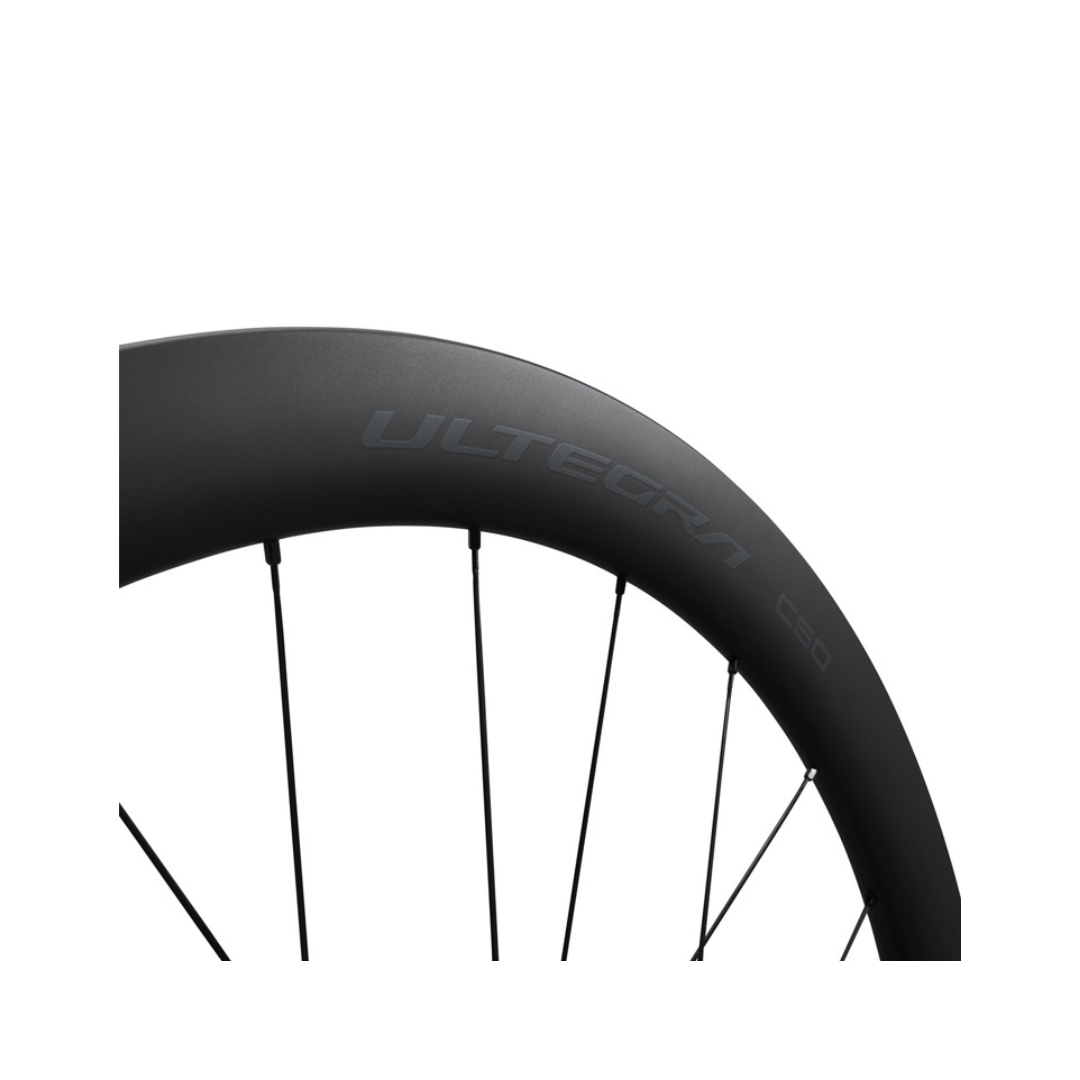

50 mm height full carbon rim

BENEFIT

Internal rim width: 21 mm

BENEFIT

Shared rim profile with R9200 DURA-ACE wheels

FEATURE

Improved aerodynamics

Model No: WH-R8170-C50-TL-R

Series: ULTEGRA

Model name: WH-R8170-C50-TL

Specification: R

Color 1 Hub shell: Series color

Brake type: CENTER LOCK disc brake

Rear speeds: 12/11

O.L.D. (mm): 142

Wheel size: 622 x 21C (700C)

Tire Type: Tubeless

Tire Recommended size: 25-622 - 32-622

Rim Height (mm): 50

Rim Internal width (mm): 21

Rim External width (mm): 28

Rim Requires rim tape: ✔

Spokes Number: 24

Spokes Straight pull: ✔

Spokes Bladed: ✔

Spokes Butted: ✔

Spokes Diameter (mm): 2.0-1.6-2.0

Axle fixing method: 12 mm E-THRU

Spline type HG spline L (ROAD 12/11-speed): ✔

Engagement type: Pawl ratchet

Disc mount CENTER LOCK: ✔

Disc mount 140 mm disc brake rotor compatible: ✔

OPTBAL (2:1) ✔

D2 rim: ✔

Seal Hub: Contact

Seal FREEHUB body: Contact

Internal grease sleeve: ✔

Compatible spoke protector: CP-WR81A

Reflector JIS/CPSC: CATEYE RR-550-WUW SW

Reflector AS: CATEYE RR-550-WUA SW

Reflector DIN: CATEYE RR-317-WUA SW

Average weight: 872

Color: Series color
