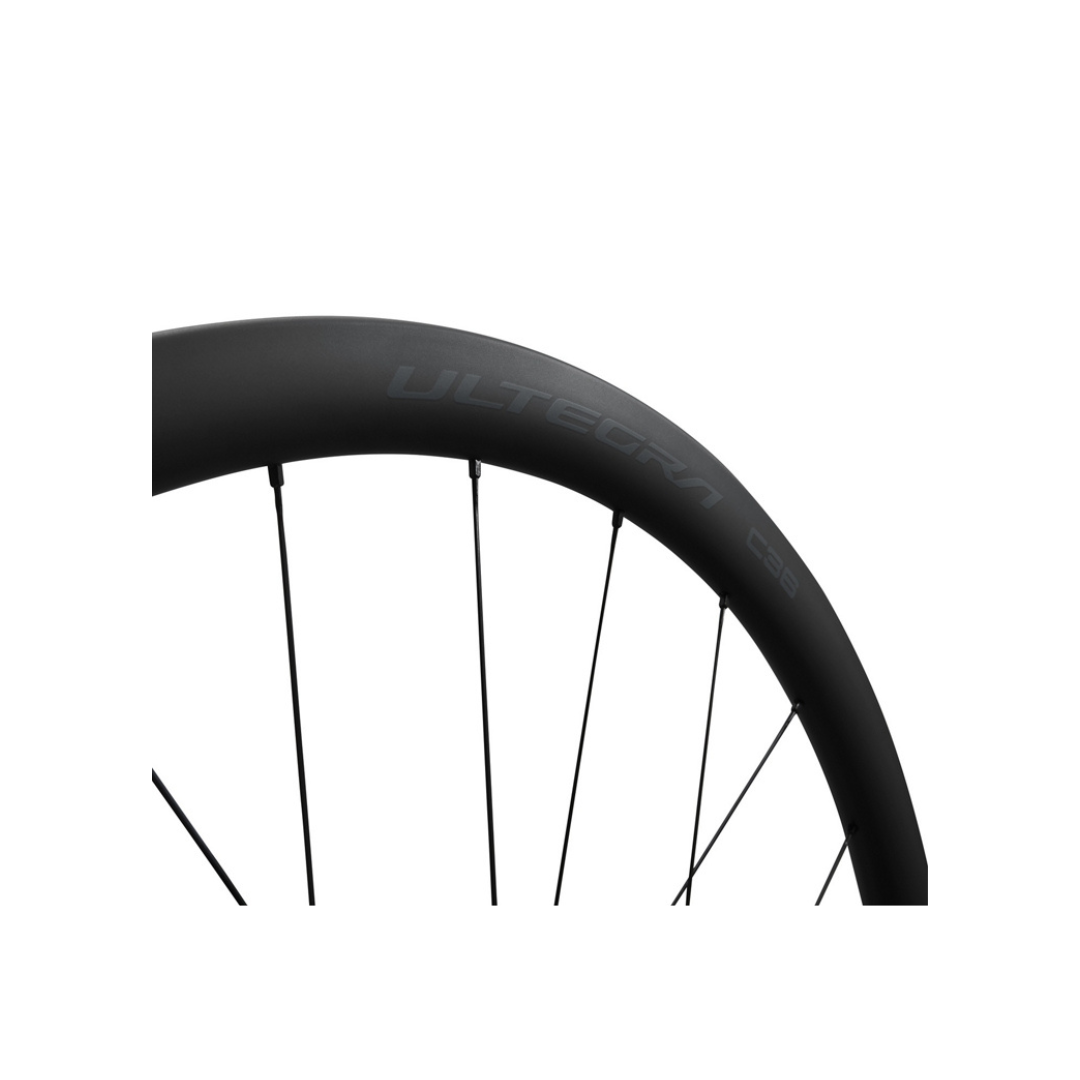

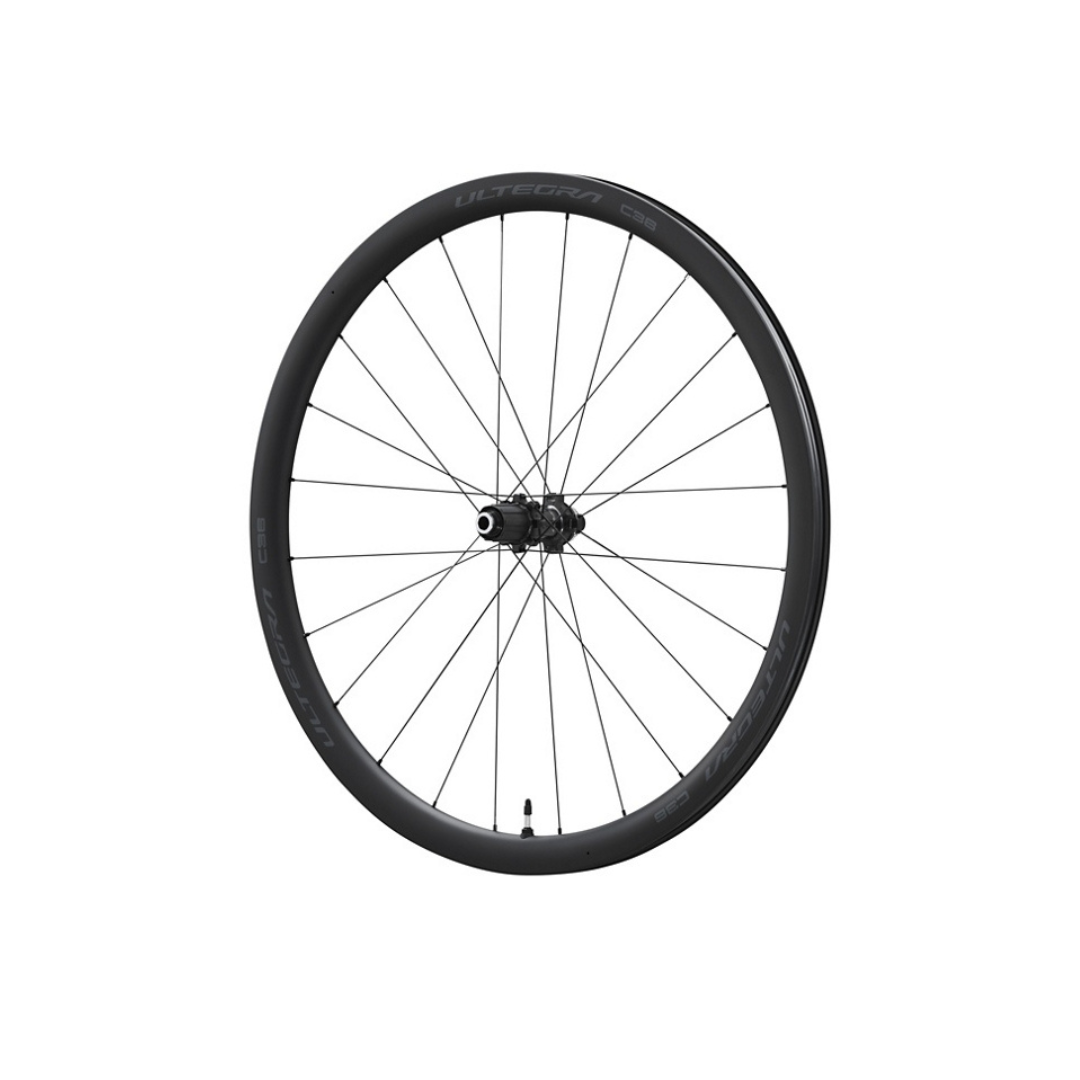

SHIMANO ULTEGRA DISC BRAKE CENTER LOCK TUBELESS WHEEL WH-R8170-C36-TL

SHIMANO ULTEGRA DISC BRAKE CENTER LOCK TUBELESS WHEEL WH-R8170-C36-TL

$1,045.00 USD
$1,045.00 USD
Sale Sold out
Shipping calculated at checkout.

 With the speed and efficiency of tubeless tires, the everyday performance of a shallow, aero profile carbon rim, and the convenience of 11 and 12-speed compatibility, the new ULTEGRA R8170 C36 wheelset is an upgrade for any road bike.

BENEFIT

36 mm height full carbon rim

BENEFIT

Internal rim width: 21 mm

BENEFIT

Shared rim profile with R9200 DURA-ACE wheels

FEATURE

Improved aerodynamics

Model No: WH-R8170-C36-TL-R

Series: ULTEGRA

Model name; WH-R8170-C36-TL

Specification: R

Color 1 Hub shell: Series color

Front/Rear: Rear

Brake type: CENTER LOCK disc brake

Rear speeds: 12/11

O.L.D. (mm): 142

Wheel size: 622 x 21C (700C)

Tire Type: Tubeless

Tire Recommended size: 25-622 - 32-622

Rim Height (mm): 36

Rim Internal width (mm): 21

Rim External width (mm): 28

Rim Requires rim tape: ✔

Spokes Number: 24

Spokes Straight pull: ✔

Spokes Bladed: ✔

Spokes Butted: ✔

Spokes Diameter (mm): 2.0-1.6-2.0

Axle fixing method: 12 mm E-THRU

Spline type HG spline L (ROAD 12/11-speed): ✔

Engagement type; Pawl ratchet

Disc mount CENTER LOCK: ✔

Disc mount 140 mm disc brake rotor compatible: ✔

OPTBAL (2:1): ✔

D2 rim: ✔

Seal Hub: Contact

Seal FREEHUB body: Contact

Internal grease sleeve: ✔

Compatible spoke protector: CP-WR81A

Reflector JIS/CPSC: CATEYE RR-550-WUW SW

Reflector AS: CATEYE RR-550-WUA SW

Reflector DIN: CATEYE RR-317-WUA SW

Average weight: 831

Color: Series color
