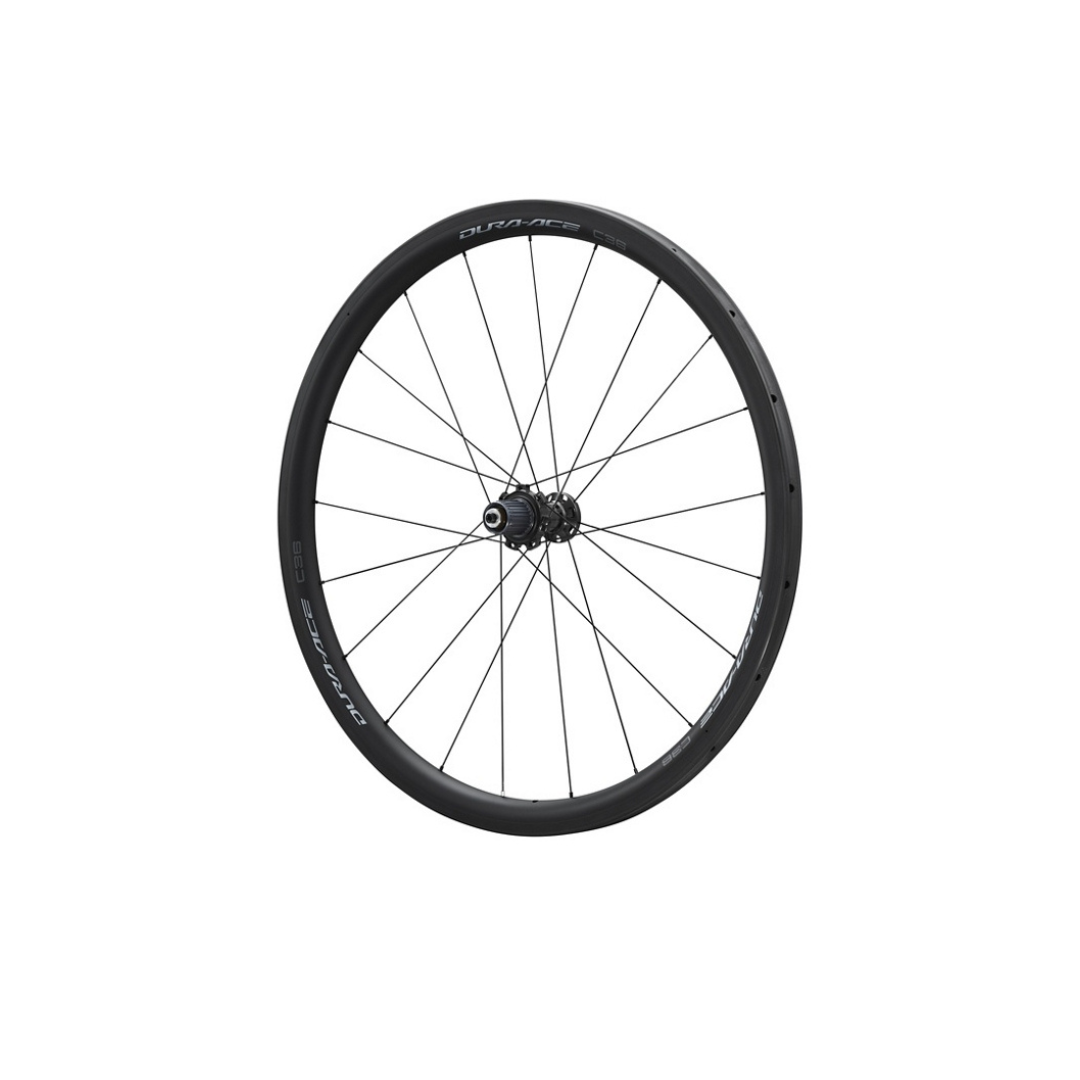

SHIMANO DURA ACE CARBON WHEELSET-WH-R9200-C36-TU
SHIMANO DURA ACE CARBON WHEELSET-WH-R9200-C36-TU
Couldn't load pickup availability
Share
Designed for the demands of professional racing, the new DURA-ACE C36 tubular rim brake wheel is a climber's delight thanks to its low weight and quick acceleration. The 36 mm deep rim is optimized for wider tubulars thanks to its 28 mm external width.
BENEFIT
36 mm height full carbon rim
BENEFIT
External rim width: 28 mm
BENEFIT
DIRECT ENGAGEMENT
BENEFIT
Compatible only with Shimano road 12-speed cassette sprockets
Model No: WH-R9200-C36-TU-R
Series: DURA-ACE
Model name: WH-R9200-C36-TU
Specification: R
Color 1 Hub shell: Series color
Color 1 Quick release: Series color
Brake type: Rim brake
Rear speeds: 12
O.L.D. (mm): 130
Wheel size: 700C
Tire Type: Tubular
Tire Recommended size: 25-28" - 32-28"
Rim Height (mm): 36
Rim External width (mm): 28
Spokes Number: 21
Spokes Straight pull: ✔
Spokes Bladed: ✔
Spokes Butted: ✔
Spokes Diameter (mm): 2.0-1.6-2.0
Axle fixing method: Quick release
Quick release skewer length (mm) 163: ✔
Quick release skewer length (mm) 168: ✔
Spline type HG spline L2 (ROAD 12-speed dedicated): ✔
Engagement type: Direct engagement
OPTBAL (2:1): ✔
Seal Hub: Contact
Seal FREEHUB body: Contact
Compatible spoke protector: CP-W124
Reflector JIS/CPSC: CATEYE RR-550-WUW SW
Reflector AS: CATEYE RR-550-WUA SW
Reflector DIN: CATEYE RR-317-WUA SW
Average weight: 684
Color: Series color
